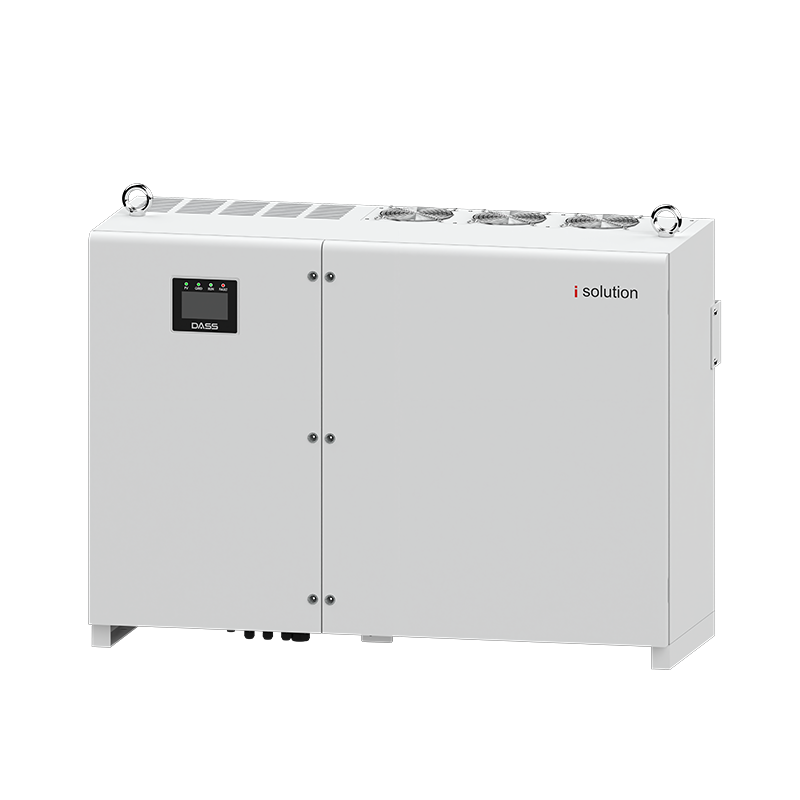

DSP-33125K-OD-HV
- MPPT Voltage Range: 580V ~ 800Vdc
- Wall-mounted Type
- Power Generation with Highest Efficiency When Double-sided Module is Applied
- Residual Current Detection Device (RCMU)
- PV Insulation Resistance Monitoring
- Active Voltage Control Function (Power Factor Control)
- KS Certification (KS C 8565)
| Input Specifications |
| Start-up Voltage (Vdc) | 650V | |
| Operating Voltage Range | 500V ~ 1000V | |
| MPPT DC Voltage Range | 580V ~ 800V | |
| Rated Voltage (Vdc) | 650V | |
| Maximum Open Circuit Voltage (Vdc) |
1000V | |
| Maximum Input Current (A) | 250A | |
| Input Terminal | 1EA | |
| MPPT Control Terminal | 1EA | |
| Control Method | Maximum Power Point Tracking (MPPT) Control, PWM Method | |
| Input Blocking Capacity | 250A(1) | |
| Output Specifications |
| Rated Output Capacity (kW) | 125kW | |
| Rated Voltage (Vac) | Grid Voltage (AC380V +10%, -12%) | |
| Frequency Fluctuation Rate (Hz) | Grid Frequency (60Hz +0.5Hz, -0.7Hz) | |
| Power Factor (%) | 0.98 or higher (+0.9 ~ -0.9) | |
| Anti-Islanding Method | Within 0.5 seconds | |
| Overload (%) | 110%, 10 Minutes | |
| Efficiency (%) | Max 98% or Higher | |
| Total Harmonic Distortion | Total 5% or Less (3% or Less for Each Difference) | |
| Reactive Power Control | Active Voltage Control / DER-AVM(0.99 / Phase Lead, Phase Lag 0.9) | |
| Output Blocking Capacity | 250A(30kA) | |
| Structure |
| Cooling Method | Forced Air Cooling Type (FAN) | |
| Ingress Protection rating (IP grade) | IP65 (Outdoor Type) | |
| External Dimensions (WxHxD,mm) | 940 X 680X 381 | |
| Total Weight (kg) | 119kg | |
| External Interface | RS485 | |
| Service Environment | Ambient Temperature : -20 ~ 50℃, Storage Temperature : -20 ~ 65℃, Humidity : Relative Humidity 90% R.H. or Less (No Dew Formation) |
|
| Protection Function | Input Overvoltage, Output Short Circuit, Overload, Inverter Overheat Protection, DC Output Leakage Prevention, Isolated Operation Prevention (IEEE1547), Grid Overvoltage/Low Voltage Protection, Gride Overfrequency/Low Frequency Protection | |
| Other Function1 | PV Insulation Resistance Monitoring, SPD Fault Monitoring, Relay Fault Monitoring, Insulation Condition Monitoring, Residual Current Monitoring (RCMU) | |
| Other Function2 | ||
| Commercial Power | Not Required | |
| Certification | KS Certification | |
| Notes | (1) DC SWITCH (based on rating 1000V) | |
