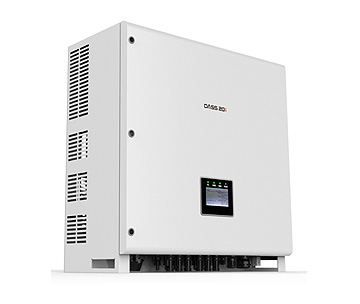

DASS 20i

Passion beyond time! Realized as a great creation!

Endless challenge towards curiosity, technology beyond limit!
Here, the DASS 10i proves it.

Highlights
  • Three phase
  • String-type
  • 34kW Grid-Connected
  • PV Inverter

Description

Technical Data

Technical Data

Input Operating start voltage 450V
Voltage range 280V – 980V
MPPT DC voltage range 480V – 800V
Rated voltage 650V
Maximum open circuit voltage 1000V
No. of MPPT 2
Max. input current 24A / 24A
Output Nominal AC Power 20kW
Rated voltage 380V / 400V
Frequency variation rate 50Hz / 60Hz (tolerance : adjustable)
Power factor (cos φ) Above 0.99
Efficiency More than 98%
Protection method DC reverse polarity, Ground fault, DC Over Voltage, Over load, Over heat, AC short circuit, AC Over/under voltage, Over/under frequency, Anti-islanding (IEEE1547)
Structure Cooling method Forced air cooling
Degree of Protection IP 65
Operating temperature/humidity -20°C ~ 55°C
Outer dimension ( W x H x D ) 550×565×280
Total weight 50kg
General Display Graphic LCD
Communication Interface RS485 / Wi-Fi [optional]
Warranty 5years / Extended
