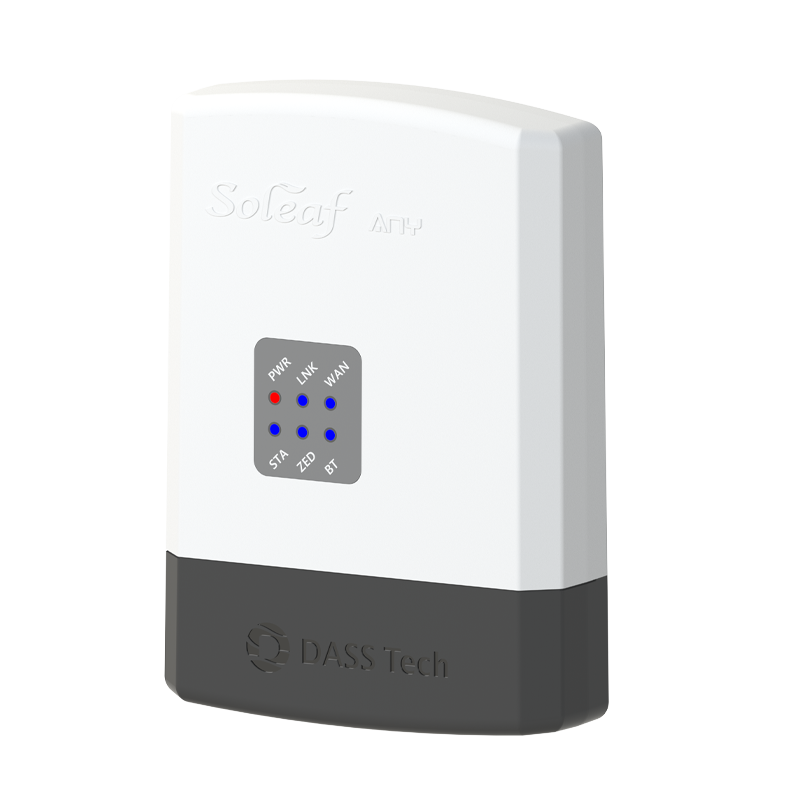

soleaf-any+
DSR-010-OD
- Internal RS-485 / External RJ45 Ethernet Communication Interface
- Easy Installation and Setup with Plug-In Method
- Recommended for Parallel Monitoring with 10 Inverters
- Remote Upgrade and Control Support for Inverter
| Serial Communication Interface | ||||
|---|---|---|---|---|
| RS485 | Signal | TRX-, TRX+ | Specification | 2400 ~ 115200bps |
| Port | SLPHC-1000R 2pin (3 ports) | |||
| Connector | Connect 10 inverters to Port 1 and 2 and 10 sensor boxes to Port 3, respectively | |||
| Network Interface | ||||
| LAN | Specification | 10BASE-T/100BASE-T | ||
| Port | RJ45 (1 port) | |||
| Port for Maintenance | ||||
| RS485 | Signal | TRX-, TRX+ | Specification | 9600 bps |
| Port | SLPHC-100R (1 port) | |||
| Status LED | ||||
| PWR | Red | Power Display | ||
| LNK | Blue | ETHERNET Junction Display, On when connected normally | ||
| WAN | Blue | ETHERNET LAN Junction Display, On when connected normally | ||
| STA | Blue | Inverter Communication Status Display, On when successful in scanning and meter reading | ||
| ZED | Blue | Remote Mode Display, On when connected remotely | ||
| BT | Blue | Bluetooth Mode Display, On when BT connected | ||
| Instrument | ||||
| Dimensions | 115mm(w) * 160mm(h) * 36mm(d) | |||
| Certification | KC Certification (R-C-Das-DSR-010-OD), SIG Certification | |||
| Service Environment | ||||
| Input Power | DC 5V / 2A | |||
| Power Consumption | MAX 2.7W | |||
| Operation/Storage Temperature | OPERATION : -20℃ ~ 80℃, STORAGE : -30℃ ~ 80℃ | |||
